SPECIFICATIONS

Brand Name: Creality

Origin: Mainland China

Item Type: Extruder

Model Number: Sprite Extruder Pro Kit

Material: All Metal

Rated Voltage: 1.4V DC

Rated Current: 0.8A

Maximum Extrusion Force: 80N (depending on consumables)

Reduction Ratio: 3.5:1

Supported Filament: PLA. ABS. PA, PC, TPU

Adapted Models: For Creality Ender -3 S1, CR-10 Smart Pro 3D Printes


This is Store of Official Creality 3D Printers, Parts & Accessories. If any part you need is not
shown online, please feel free to contact us, we'll find for you and offer best price as we can.



Specifications:



Name

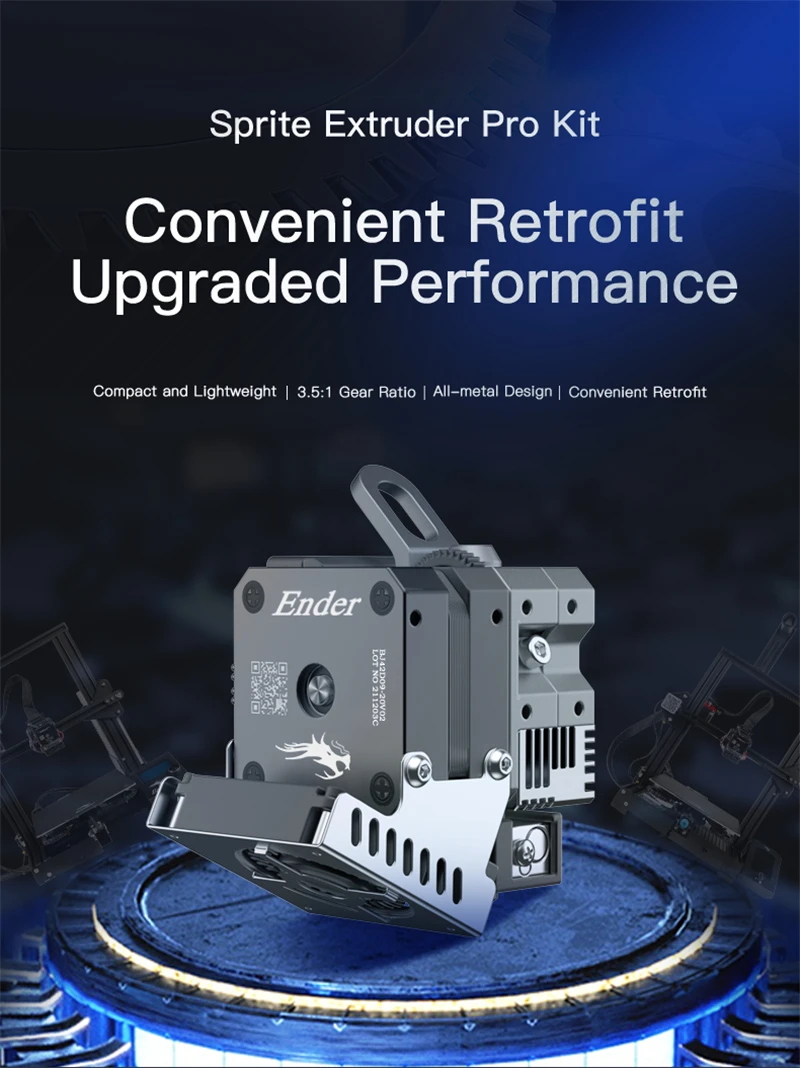

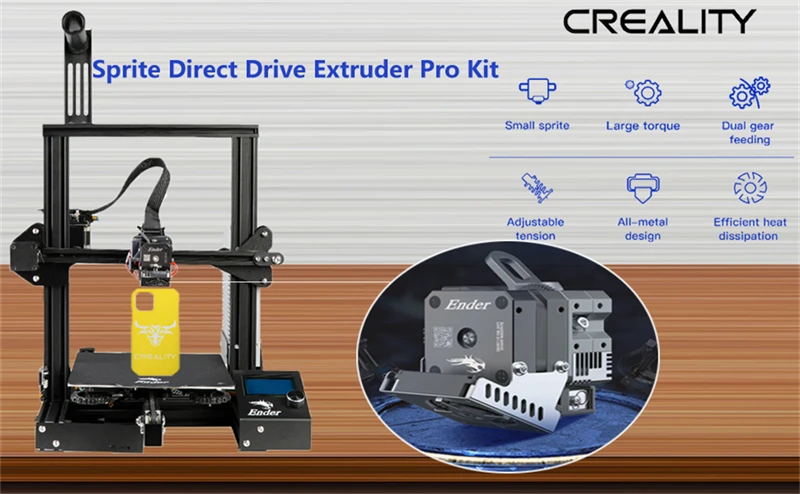

Creality Sprite Extruder Pro Kit (CR Touch Installation Accessories Kit Included)

Rated Voltage

1.4VDC

Rated Current

0.8A

Drive

Dual gear drive

Reduction Ratio

3.5:1

Maximum Extrusion Force

80N (depending on filament)

Withdrawal Distance

Max 3mm

Supported Filament Diameter

1.75 ± 0.05mm

Supported Filament

PLA, ABS, PA, PETG, PC, TPU

Compatible Models

Ender 3/ Ender 3 Pro/ Ender 3 V2/ Ender 3 Max
Key Features:

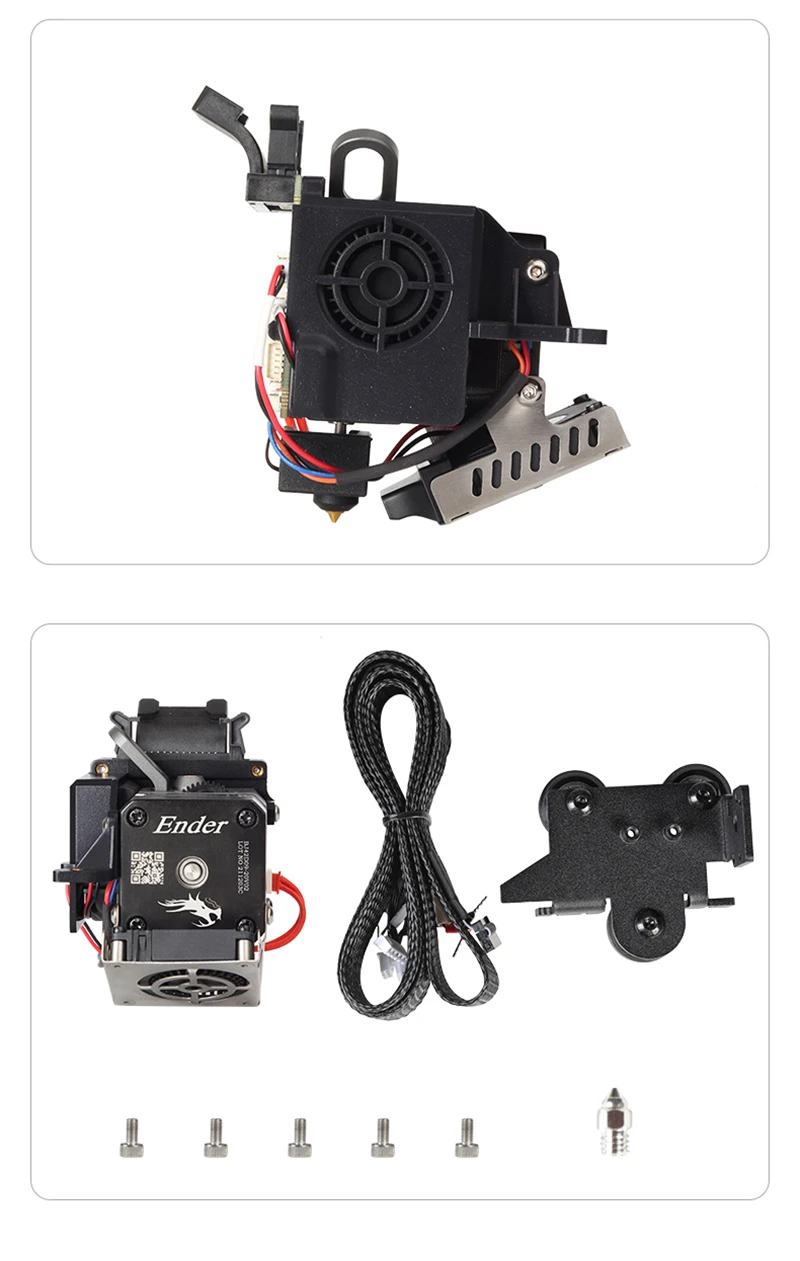

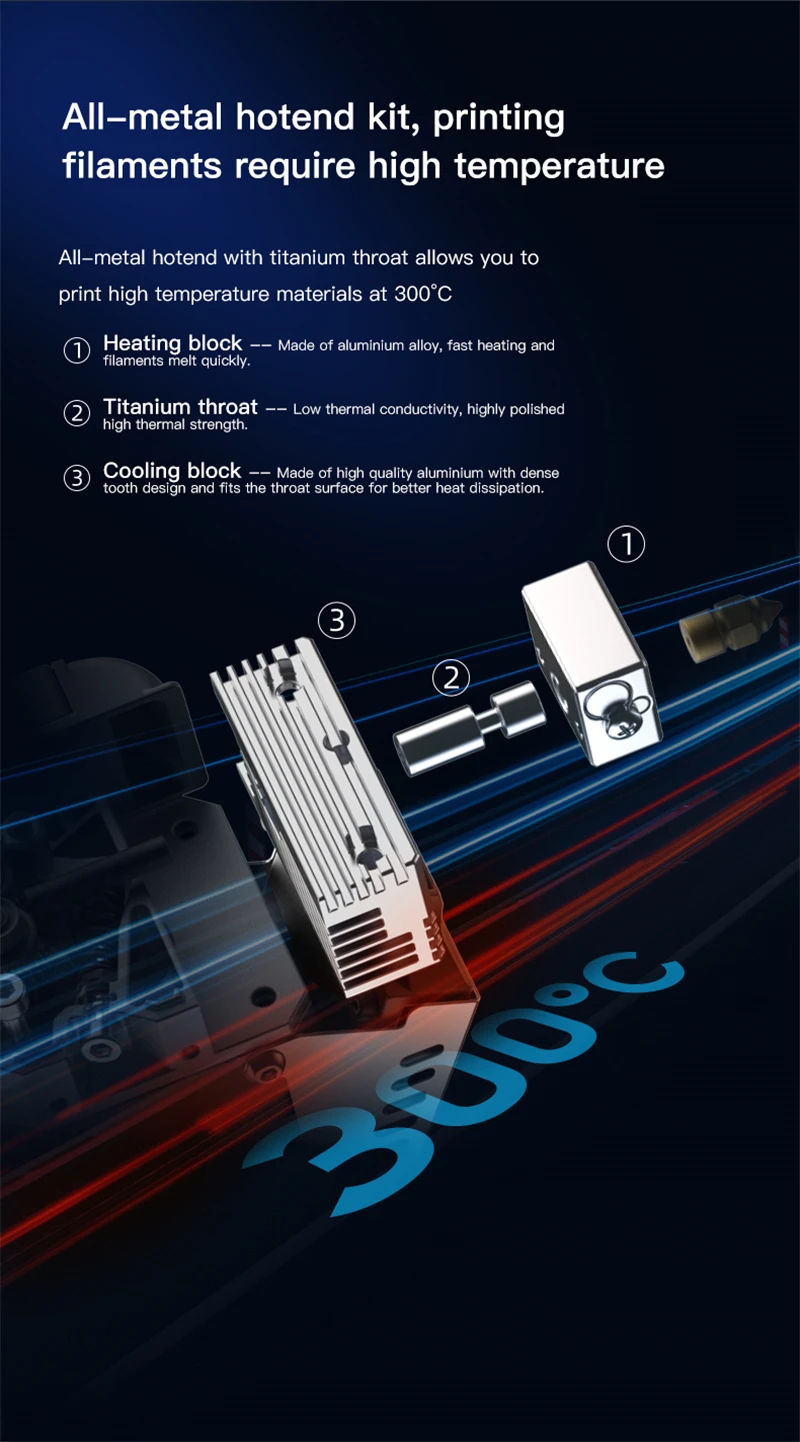

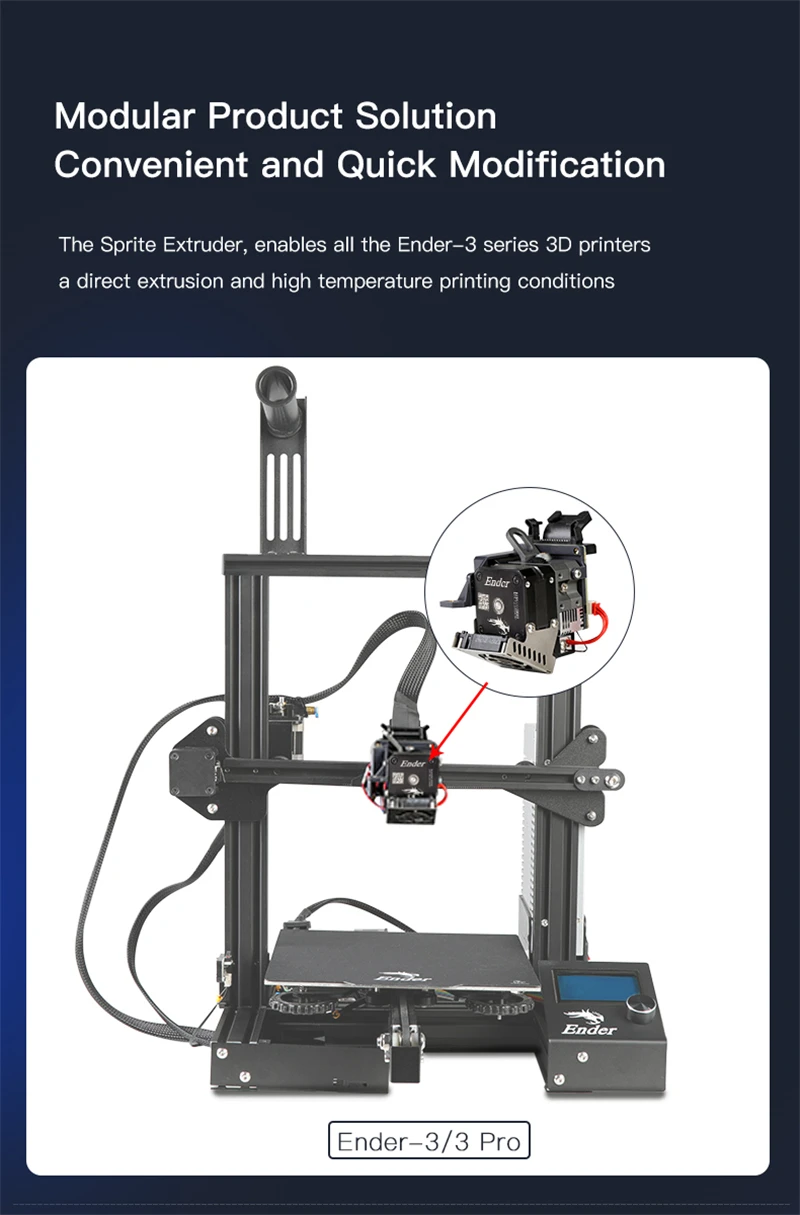

1. Sprite Extruder Pro Upgrade Kit come with a short cable for connecting BL Touch/CR Touch, combine extruder and all metal hotend

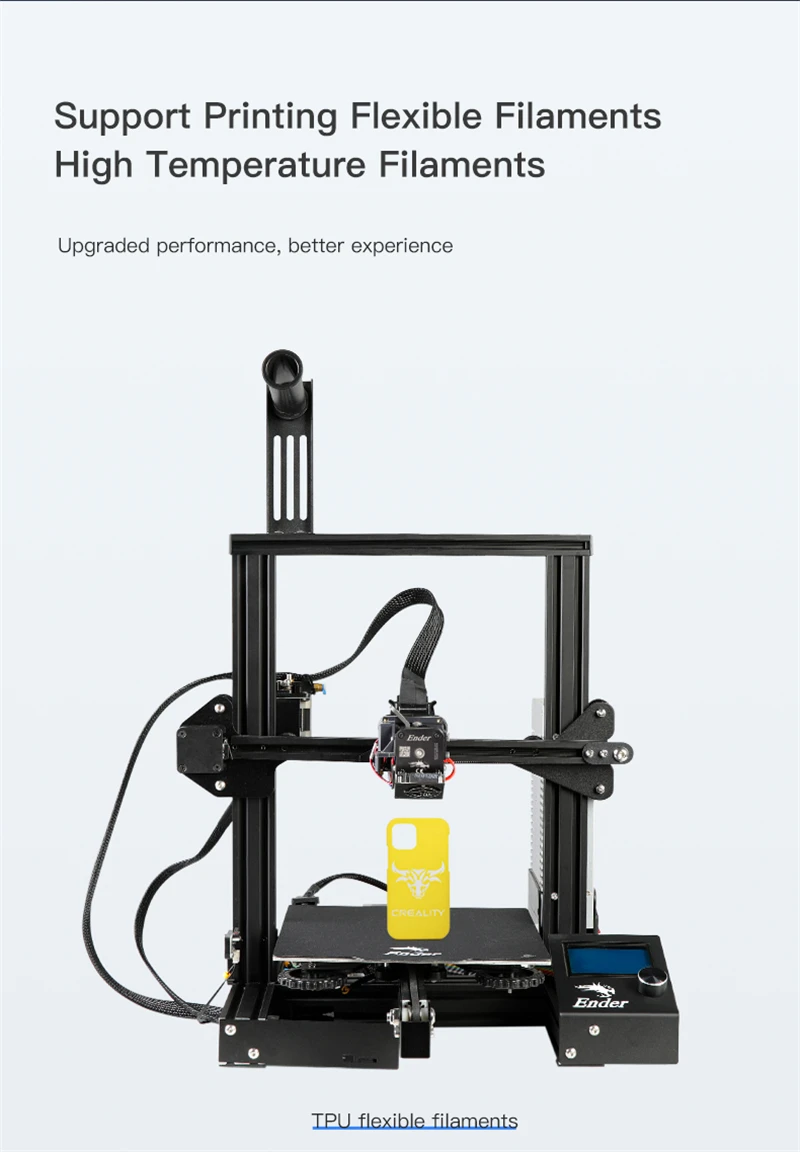

enables all the Creality Ender-3 series 3D printers for printing flexible filament such as TPU, PLA, PETG and other flexible filaments.

2. This direct drive extruder adapts double-toothed structure which does not damage filaments, allowing more reliable and stable feeding.

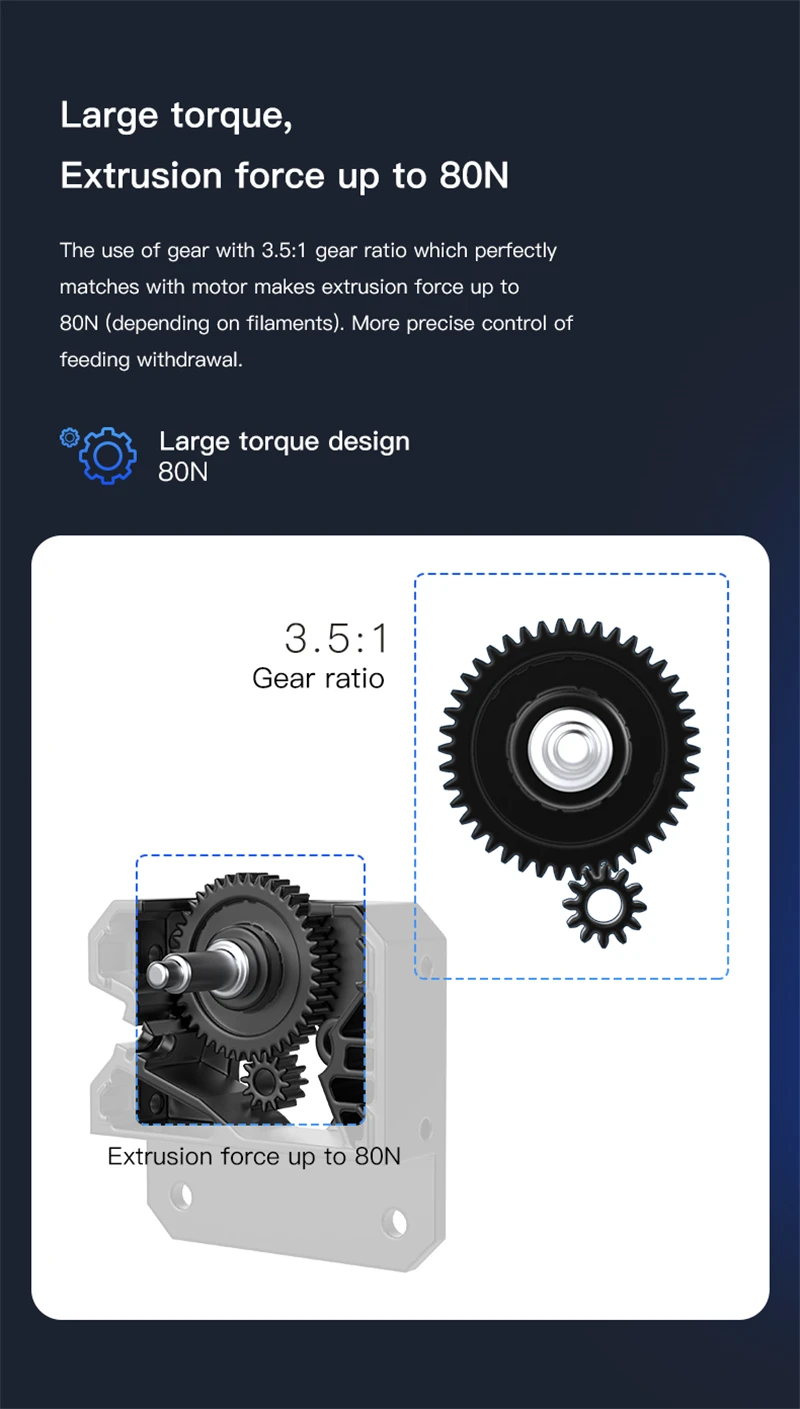

The use of gear with 3.5:1 gear ratio which perfectly matches with motor makes extruder force up to 80N. More precise control of feeding withdrawal.

3. With Compact and light weight design, 54x50x64.3mm small size, 288g weight. It can be applied to direct and bowden filament feeding to

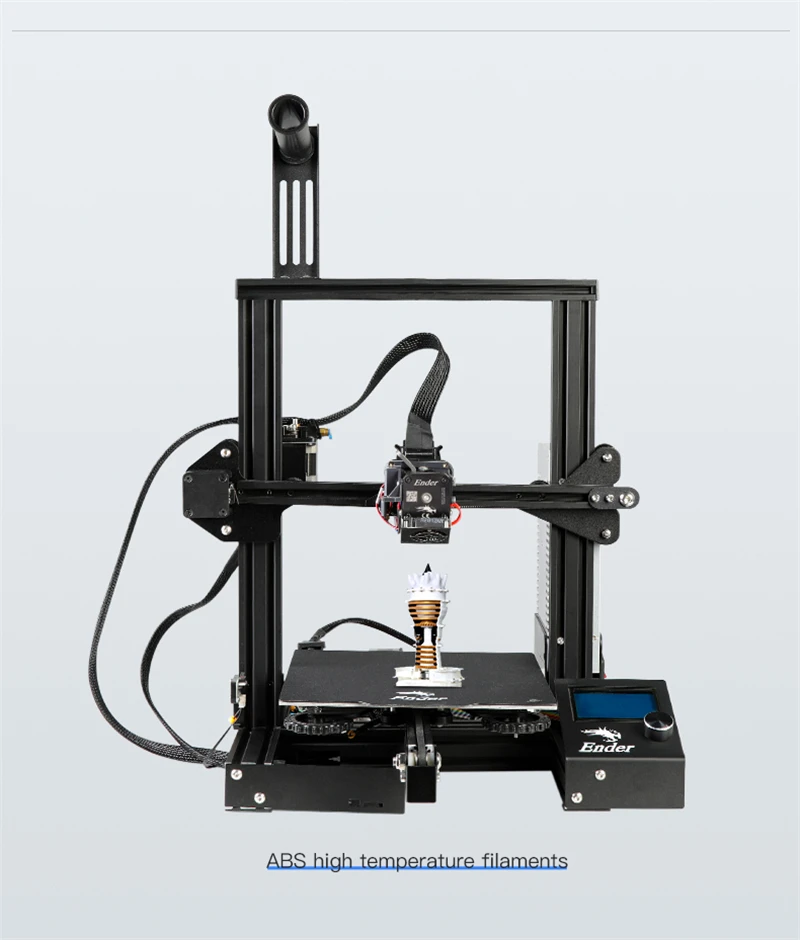

meet printing needs of users at dirct and bowden extrusion. Better effect for PLA, PETG,ABS, TPU and other flexible filament.

4. Simulation of flow field mechanics and dual fan design results in powerful heat dissipation function and more stable model formation. High

quality silent fan with metal fan cover, ensures safety when high temperature printing.

Note: There's three versions (packages) of Sprite Extruders in the link, here are their
comparions as below, please kindly check and choose the one you exactly need.


1. Sprite Standard Extruder for : Ender-3 S1

(No Mounting plate and the Flat Cable)


2. Sprite Extruder Pro for : Ender-3 S1/CR-10 Smart Pro/Ender-3 S1 Pro

(No Mounting plate and the Flat Cable)


3. Sprite Pro Kit for: Ender-3_Ender-3 Pro_Ender-3 MAX_Ender-3 V2

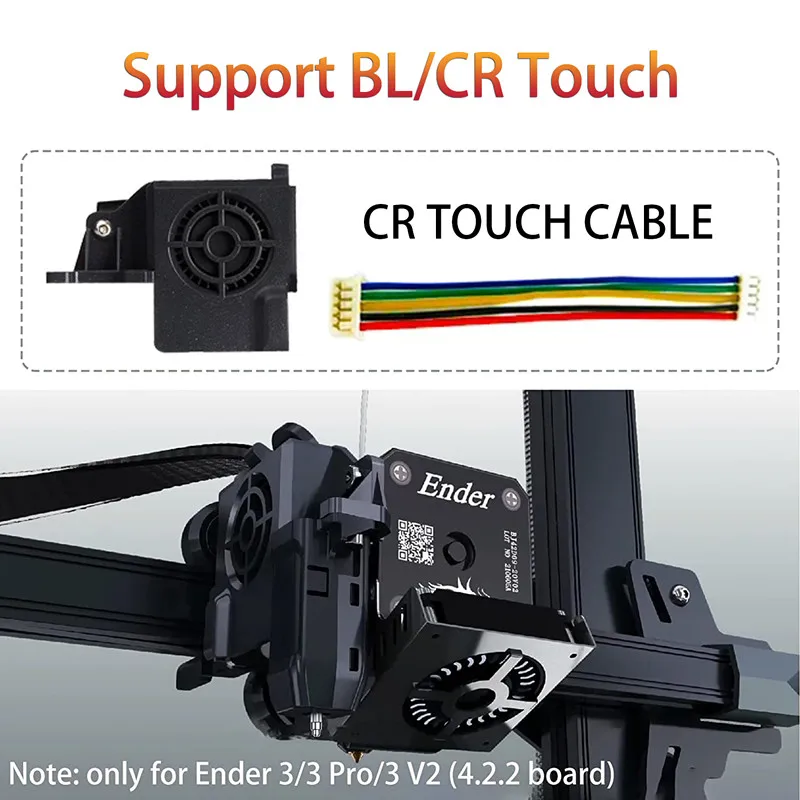

(Support BL/CR TOUCH, Include the Mounting plate and the Flat Cable)
