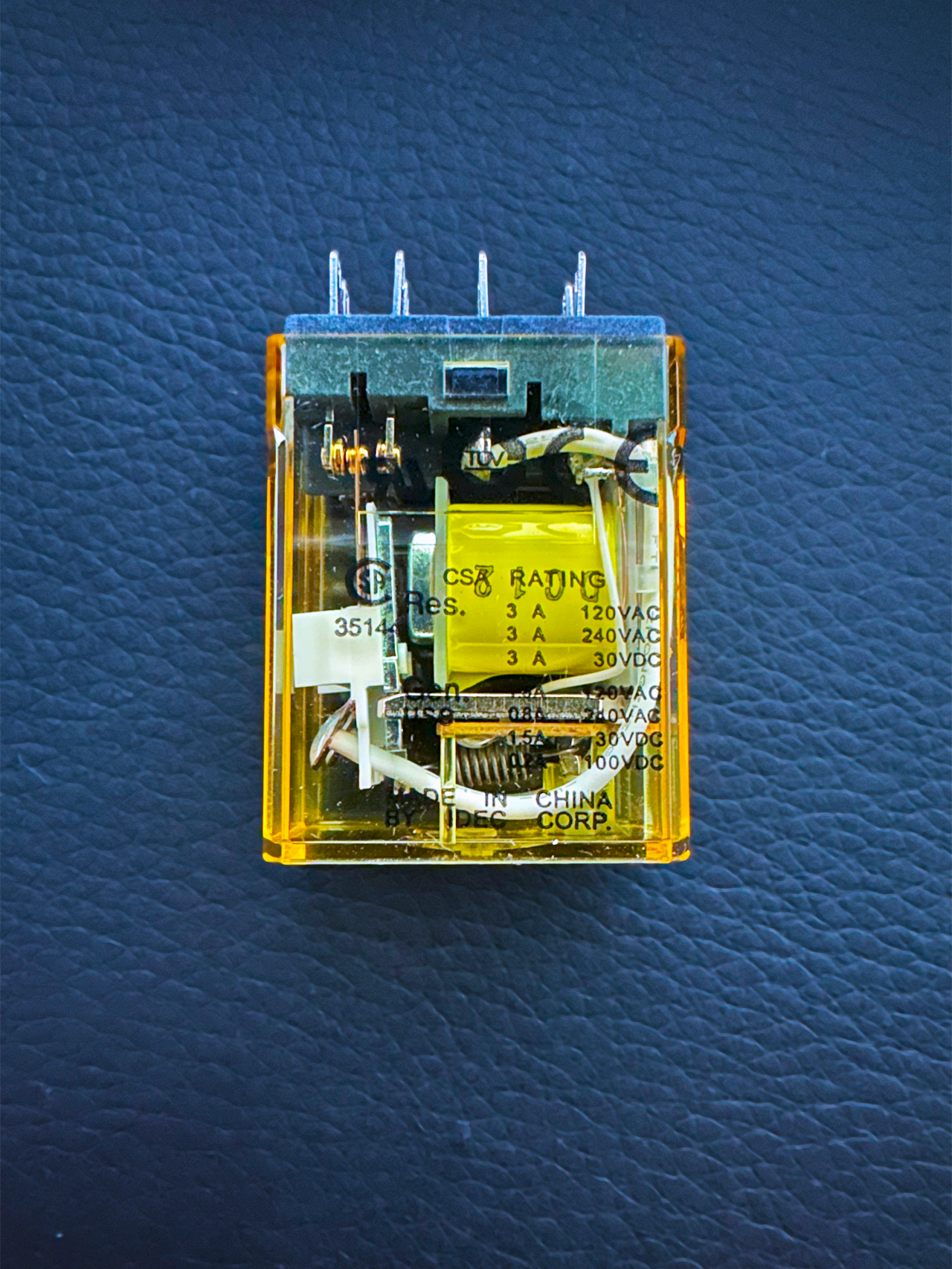

1X RY2S-ULDC12V IDEC Plug-in Power Relay 12VDC DPDT 3A W/ LED Indicator

Ready to Ship

Ask a Question

30-Day Return

1 Unit of RY2S-ULDC12V IDEC Plug-in Power Relay 12VDC DPDT 3A W/ LED Indicator

Sofitrek Product Disclaimer
Nature of Goods:
All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers.
Non-Affiliation:
Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity.
Exclusion of Manufacturer's Warranty:
Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose.
Firmware and Software:
Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors.
Limitation of Liability:
Sofitrek shall not be held liable for any form of damages—direct, indirect, incidental, consequential, or otherwise—arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use.
Compliance and Responsibility:
The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software.

By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety.
Specification
Model RY2S-ULDC12V
Contact Type DPDT (Slim) 3A
Coil Voltage 12V DC
Rated Current 75 mA
Coil Resistance 160 Ω
Max Applied Voltage 110%
Continuous Current 3A
Contact Power 660 VA AC / 90 W DC
Contact Voltage 220V AC / 30V DC
Contact Load 3A (Resistive), 1.5A (Inductive)
TÜV Rating 240V AC, 3A / 30V DC, 3A
Contact Material Gold-plated silver
Contact Resistance 50 mΩ max
Min Applicable Load 24V DC, 10mA
Operating Time 20 ms max
Release Time 20 ms max
Power Consumption 0.8W (DC)
Insulation Resistance 100 MΩ min
Dielectric Strength 1500V AC (1 min)
Operating Temp -25 to +55°C
Operating Humidity 45 to 85% RH
Electrical Life 200,000 ops (220V AC, 3A)
Mechanical Life 50,000,000 ops
Weight 23g
Mounting Torque 1.1 Nm

Shipping Policy

Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind.

Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing.

Note: This method is less recommended due to the potential for delays.

Return Policy

We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue.

Packaging

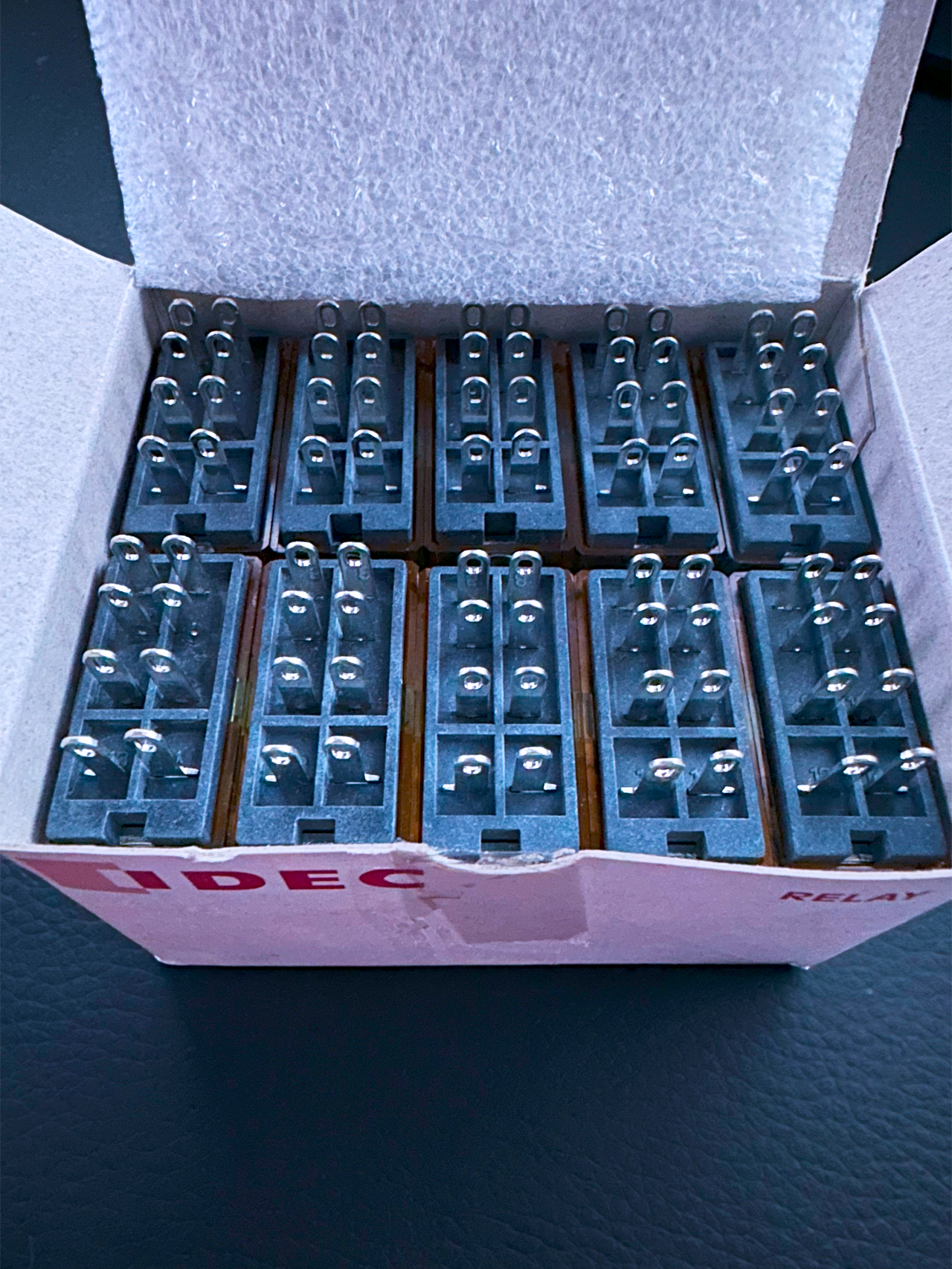

Our items are packaged according to their needs—some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences.
