1.03" Micro OLEDoS Display 2560×2560 90Hz 1800nits - MIPI
Product Overview
This display is a 1.03 inch diagonal, 2560(RGB) × 2560 dots active matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.
Applications: View finders, Head mounted displays, etc.
1.03 inch Micro OLED 2560×2560 Features:
- – 1:1 high resolution
- – Manufactured by SeeYA
- – Specifically designed for VR & AR devices
- – Superior brightness and contrast
- – Match with newest Pancake optics lens
1.03 inch Si-OLED micro display Parameter
- Product Number:JKSY103WAM01
- Display Type:Micro OLED
- Resolution:2560 x 2560
- Screen Size:21.087mm x 22.765mm x 1.475mm
- Active Area:18.432mm x 18.432mm/ 1.03" diagonal
- Luminance(Brightness):1800nits(Typ.)
- Color:Full RGB
- Contrast Ratio:50,0000:1
- Interface:MIPI+I2C
- Frame Rate:60Hz~90Hz
- Operating Temperature:-20℃ to +70℃
- Storage Temperature:-40℃ to +80℃
- Plan:Mass Production
- Application:AR VR devices, EVF, Night vision, sight...
Mechanical Drawing for 1.03" micro screen

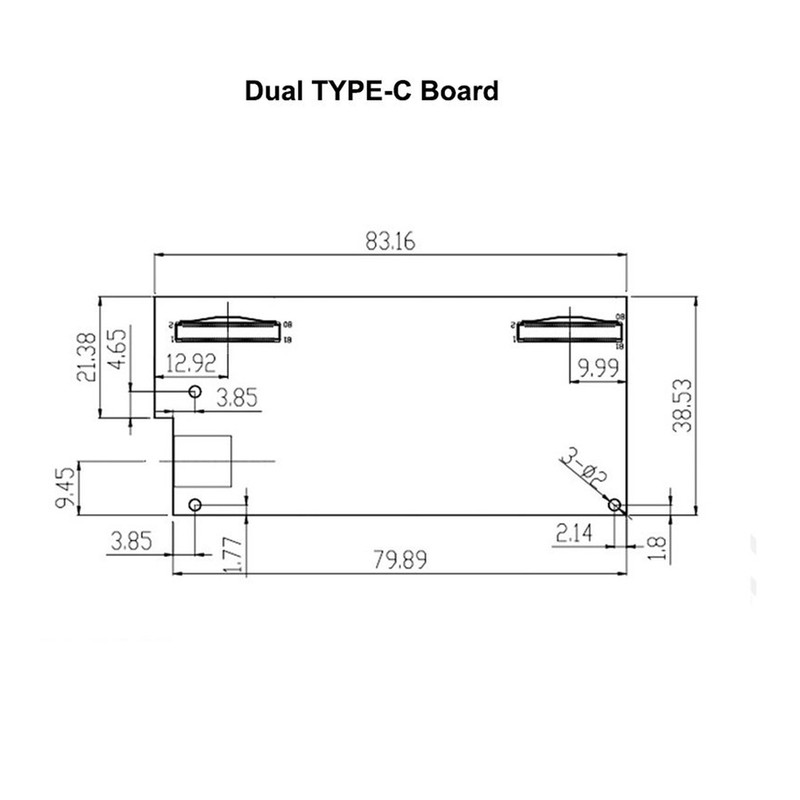

Mechanical Drawing for Binocular Type-c Controller Board:
1.03 inch 2560*2560 Micro display Screen Applications:
- AR/VR display, electronic viewfinder of digital camera/video camera；
- Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
- Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
- Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
- Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
Packing Listing:
1.03 inch 2560*2560 Micro display Screen :1pcs
Binocular Type-c controller board: 1pcs
