Portable Handheld Tablet Oscilloscope with and 39 similar items

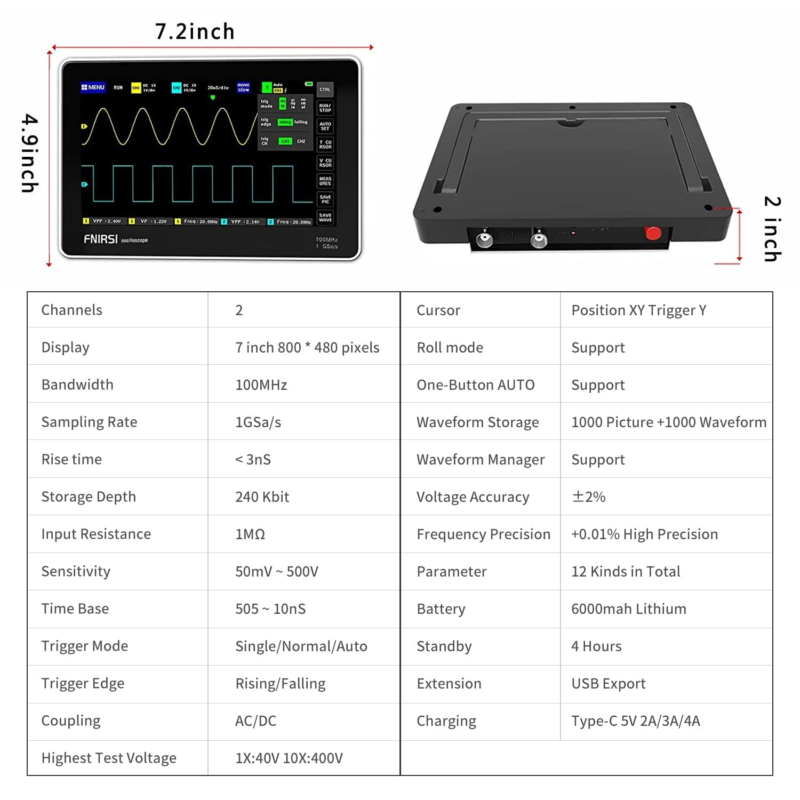

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed Portable Handheld Tablet Oscilloscope with 100X High Voltage Probe, 2 Channels 100Mhz Bandwidth 1Gsa/S Sampling Rate 7" TFT LCD Touch Screen Specification Batteries 1 Lithium Polymer batteries required. (included) Country of Origin China Package Dimensions 10.16 x 6.57 x 3.5 inches; 2.76 Pounds Manufacturer FNIRSI 6.57 inches x 10.16 inches x 3.5 inches. Weight: 2.76 lb Item Description Professional Designed: FNIRSI oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used freely for both periodic analog signals and aperiodic digital signals. Highly Performance: 7 inches, 800 * 480 resolution, bright colors and high contrast. Ultra-thin and easy to carry. Built-in high-voltage protection module,can tolerate a continuous voltage of up to 400V. 6000mAh high-performance lithium battery, can be used continuously for 4 hours after fully charged. Easy to Operate: Equipped with efficient one-button automatic device. One-click waveform saving and screenshots. The built-in 1GB storage space can store up to 1000 screenshots 1000 sets of waveform data.Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc Easily Measuring : Capacitive screen touch gesture operation, cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion. Lissajous Graphic Display FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal. Product Description FNIRSI 1013D Oscilloscope - 2 Channels Handheld Tablet Oscilloscope, Portable Digital Storage Oscilloscope Kit FNIRSI Provides More Professional Accessories 1013D Oscilloscope 2 * Matching 100MHz Probe Micro USB Type-C data line Charger User manual (English) 1 * P4100 Oscilloscope Probe 100X High Voltage Number of Channel 2 Bandwidth 100MHz Sample Rate 1GSa / s Storage Depth 240Kb Timebase 50S / div~10nS / div Vertical Sensitivity 50 mV / div~500 V / div Input Impedance 1M ohm Trigger Modes Auto / Normal / Single Trigger Types Rising Edge / Falling edge Coupling DC / AC Highest Test Voltage 1X : 40V / 10X : 400V Cursor Position XY / Trigger Y Waveform Manager Support (1000 pic +1000 waveform) Frequency Precision 0.01% USB Export Support Power Supply 6000 mAh lithium battery High Definition Full Screen 7 inch color TFT- LCD full Capacitive Touch Screen display with 800 * 480 resolution. Thinner Ultra-light 7.08*4.72*1.57 in thinner size and 600g super light weight design,easy to carry. Professional Designed 2 channels , 100MHz analog bandwidth @ 1 GSa/s Real-time sampling , 240kbit Sample Memory Depth Powerful Waveform Manager USB Export One-key screenshot and saving design,built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data,and support UBS export. Lissajous Figures Display FFT Analysis Function Lissajous figures display function can be used to determine the amplitude, frequency, and phase contrast of 2 groups of signals; FFT analysis function can analyze the harmonic components of the signal. Super-long Stand By Time Built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge. Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 281 4.3 out of 5 stars 69 1.0 out of 5 stars 1 4.5 out of 5 stars 113 4.5 out of 5 stars 224 3.3 out of 5 stars 12 Price $173.99$173.99 $140.39$140.39 $125.00$125.00 $89.99$89.99 $36.99$36.99 $139.99$139.99 Bandwidth 100Mhz 100Mhz 50MHz 10Mhz 200KHz 180Mhz Sample Rate 1GS/s 1GS/s 250MS/s 50MS/s 2.5MS/s 500MS/s Channels 2 2 2 2 1 2 Record Length 240Kb 240Kb 64Kb 32Kb / 120Kb Waveform Manager ? ? ? ? / ? Signal Generator DDS Signal Generator / DDS Signal Generator DDS Signal Generator / DDS Signal Generator Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
