RM2S-ULAC12 Idec Plug-in Power Relay 12V Ac and 49 similar items

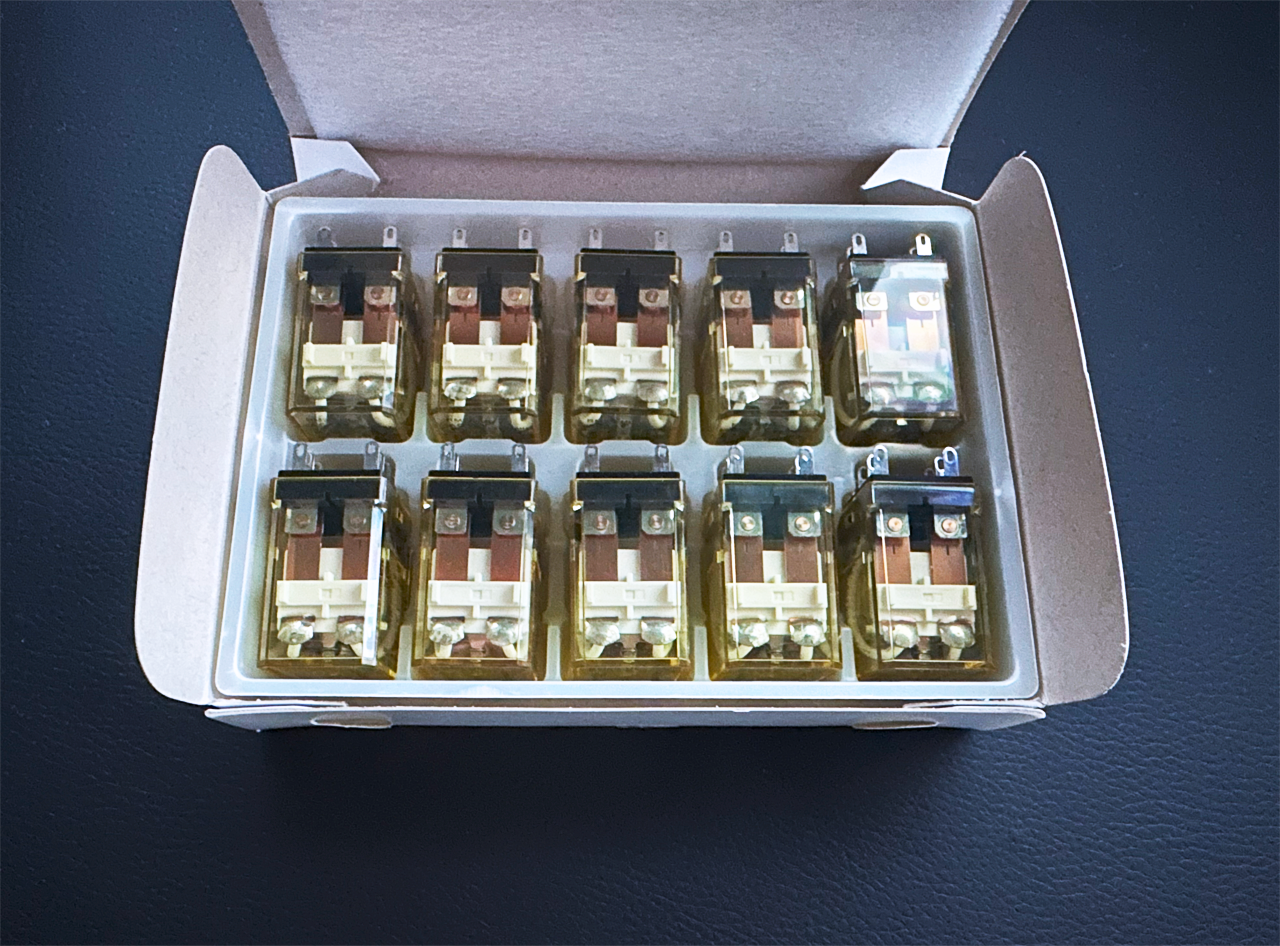

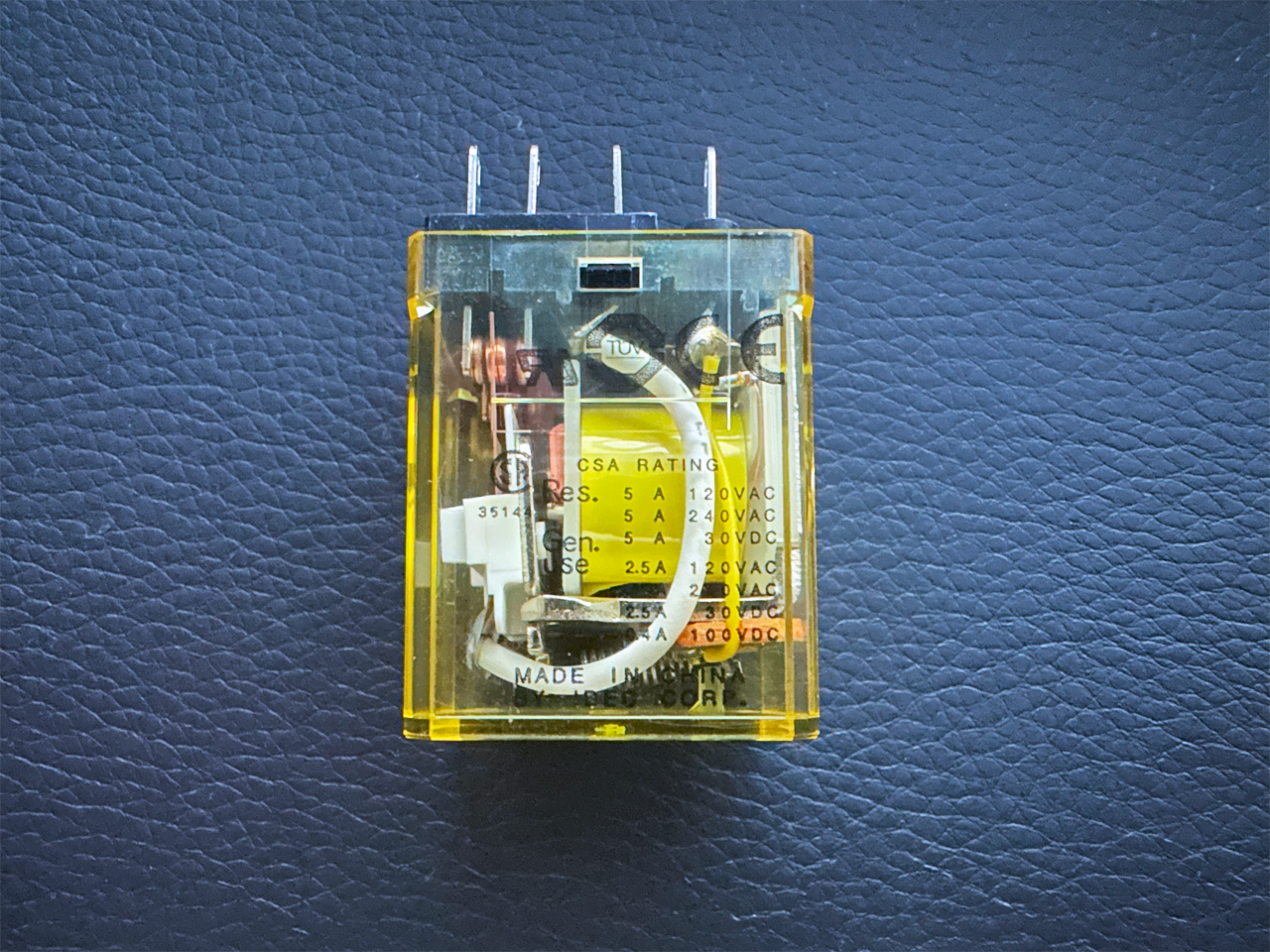

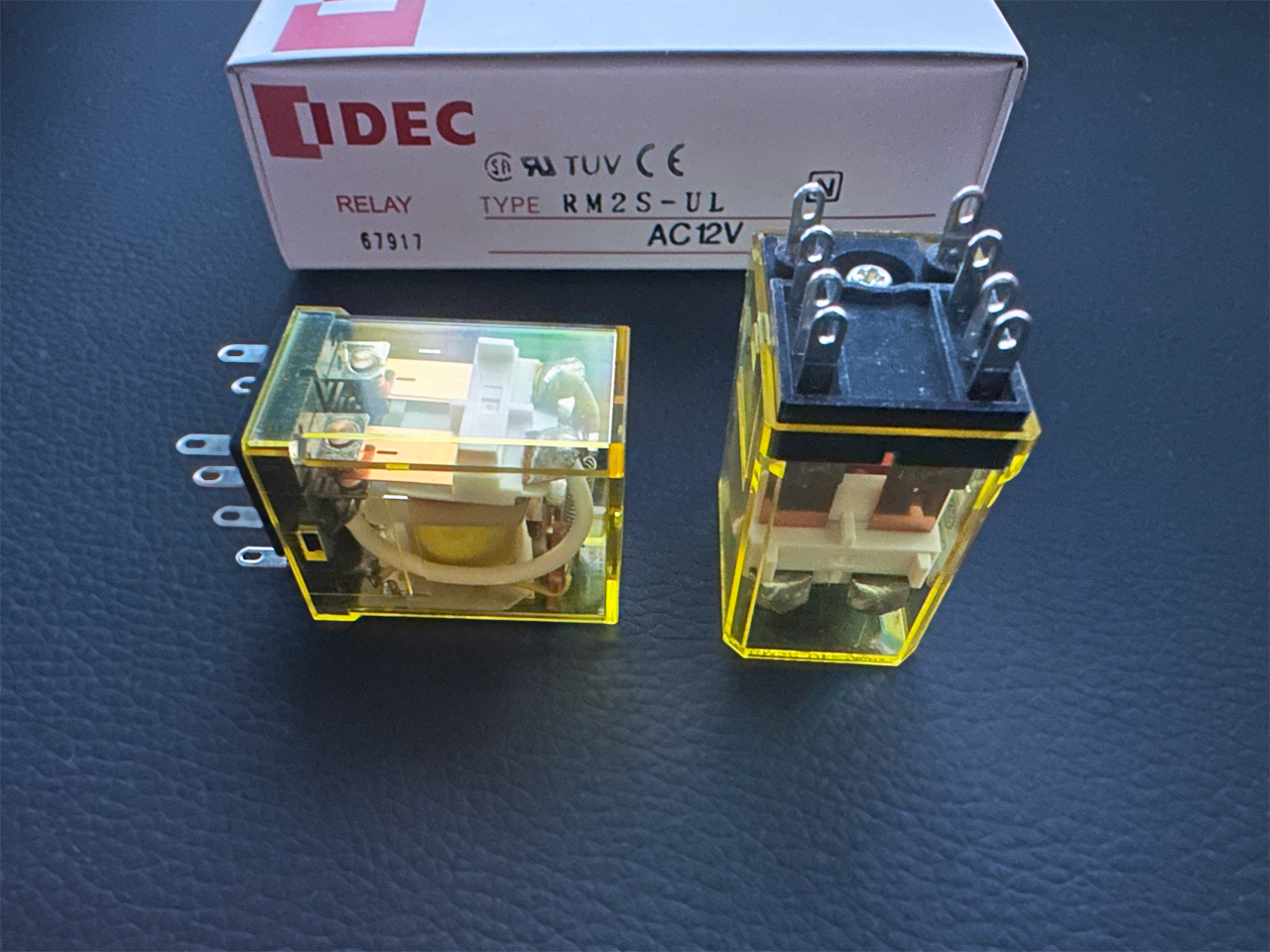

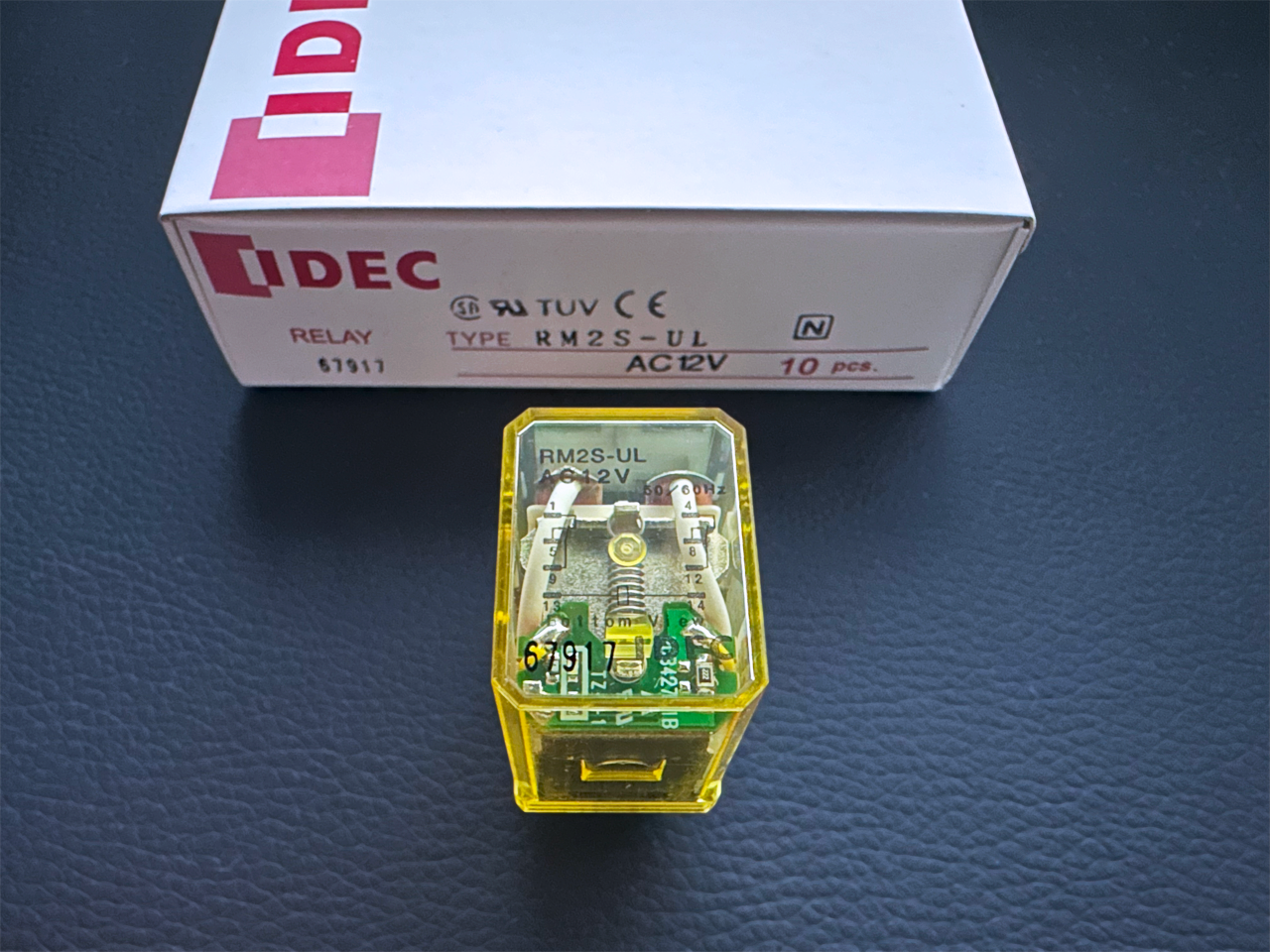

Store Seller Profile Feedbacks Contact Relays Timers General Purpose Relays AC Coil Power Relays close 1Pcs RM2S-ULAC12 IDEC Plug-in Power Relay 12V AC 5A DPDT Blade W/ LED Indicator Ready to Ship Ask a Question 30-Day Return Description Specifications Shipping Return Policy Disclaimer 1 Unit of RM2S-ULAC12 IDEC Plug-in Power Relay 12V AC 5A DPDT Blade W/ LED Indicator Specification Relay Type POWER/SIGNAL RELAY Manufacturer IDEC CORP Part Number RM2S-UL Coil Voltage Code AC12 Coil Voltage 12V AC Style With Indicator Contact Configuration DPDT Contact Material Silver Contact Resistance 30 m? max Minimum Applicable Load 5V DC, 1 mA Operate Time 20 ms max Release Time 20 ms max Power Consumption 50Hz 1.4 VA Power Consumption 60Hz 1.2 VA Power Consumption DC 0.9 W Insulation Resistance 100 M? min (500V DC megger) Dielectric Strength Live and Dead Parts 2000V AC, 1 minute Dielectric Strength Between Contact and Coil 2000V AC, 1 minute Dielectric Strength Between Contacts of Different Poles 2000V AC, 1 minute Dielectric Strength Between Contacts of Same Pole 1000V AC, 1 minute Operating Frequency Electrical 1800 operations/hour max Operating Frequency Mechanical 18,000 operations/hour max Temperature Rise Coil 85C max Temperature Rise Contact 65C max Vibration Resistance Damage Limits 10 to 55 Hz, amplitude 0.5 mm Vibration Resistance Operating Extremes 10 to 55 Hz, amplitude 0.5 mm Shock Resistance Damage Limits 1000 m/s (100G) Shock Resistance Operating Extremes 200 m/s (20G) Mechanical Life 50,000,000 operations min Electrical Life 500,000 operations (220V AC, 5A) Operating Temperature -25 to +45C (no freezing) Operating Humidity 45 to 85% RH (no condensation) Storage Temperature -55 to +70C (no freezing) Storage Humidity 45 to 85% RH (no condensation) Weight 35g Continuous Current 5A Allowable Contact Power (Resistive) 1100VA AC, 150W DC Allowable Contact Power (Inductive) 440VA AC, 75W DC Rated Load (Voltage) 110V AC Rated Load (Resistive) 5A Rated Load (Inductive) 2.5A UL Ratings Resistive 240V AC, 5A UL Ratings General Use 240V AC, 2A CSA Ratings Resistive 240V AC, 5A CSA Ratings General Use 240V AC, 2A TÜV Ratings Resistive 240V AC, 5A TÜV Ratings General Use 30V DC, 5A Rated Current 50Hz 121 mA Rated Current 60Hz 100 mA Coil Resistance 39.3 ? Max Continuous Applied Voltage 110% Pickup Voltage 80% max Dropout Voltage 30% min Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. Severability: If any provision of this disclaimer is found to be invalid or unenforceable, the remaining provisions shall continue to be in full force and effect. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Links Shop Feedbacks Contact Us Sofitrek
