Siemens WP6412 Meter Socket 4-Gang 600A 225 and similar items

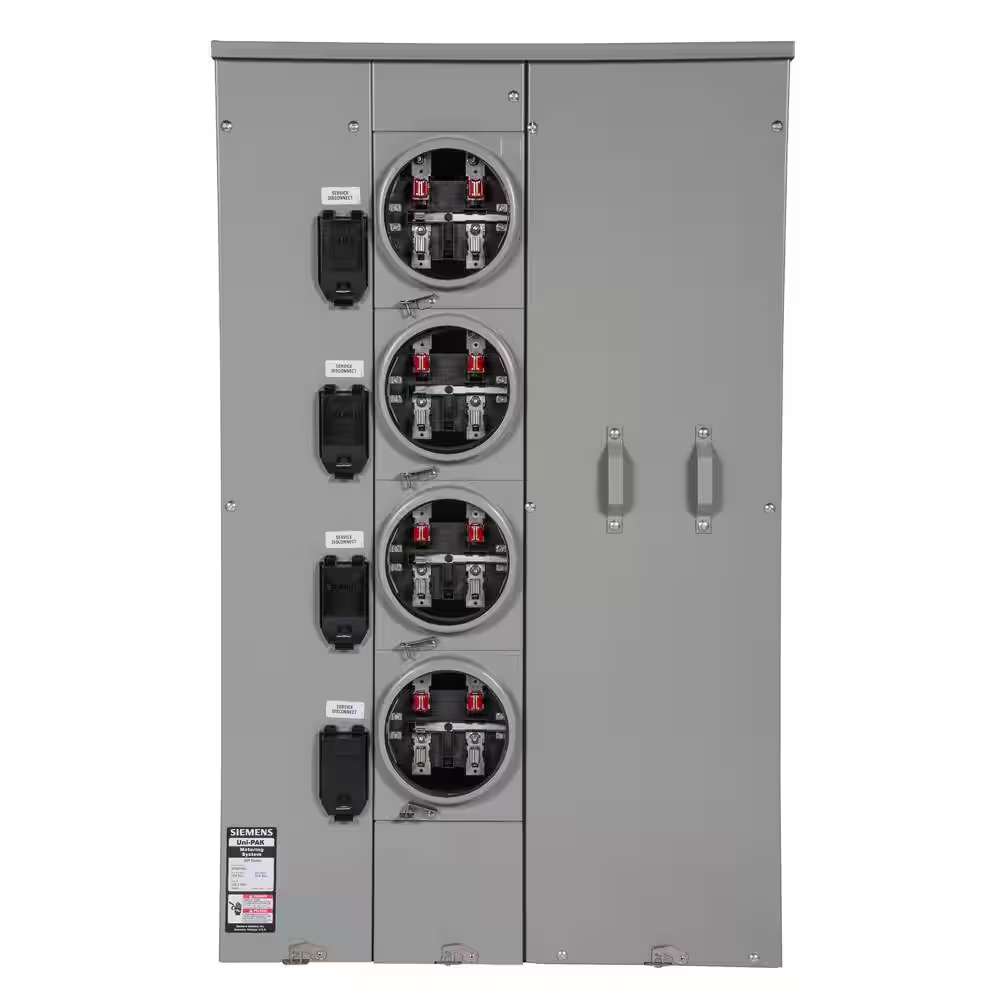

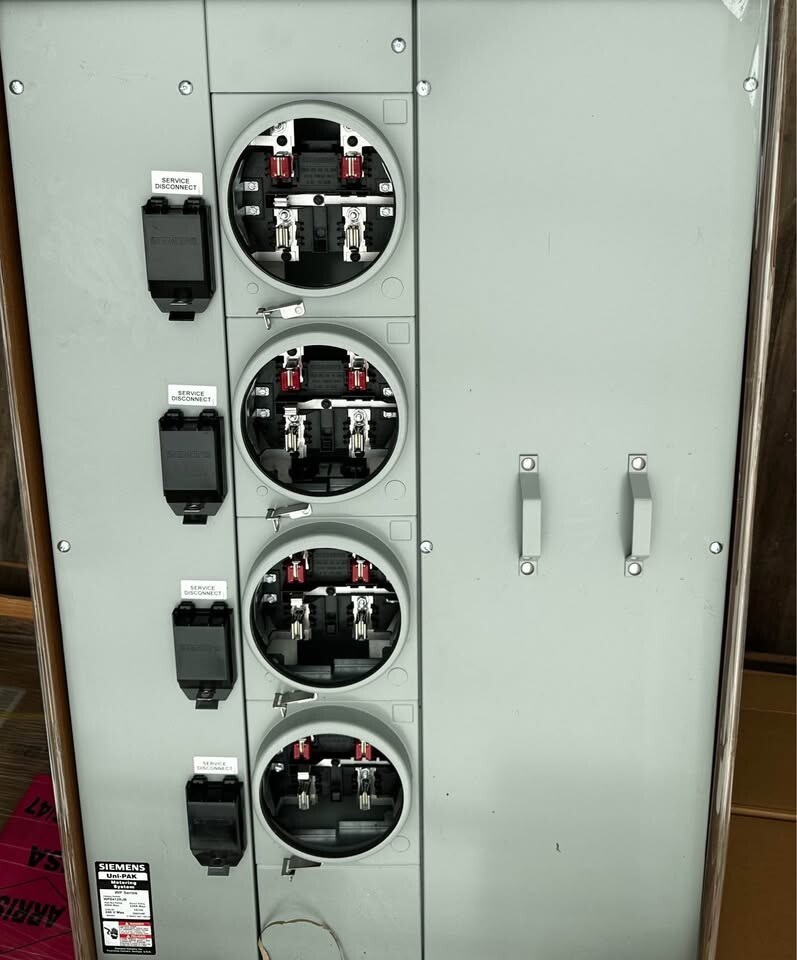

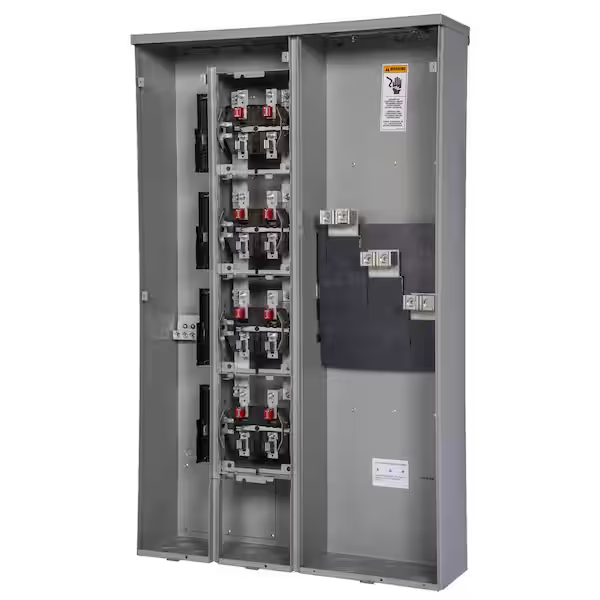

Siemens Uni-PAK Metering offers maximum flexibility and ease of installation to meet the service requirements of multiple position metering projects. The outdoor/indoor devices are available in 2 through 6-Gang set-ups which consist of a pull section with main lugs or stud terminations and 4/5 jaw meter sockets with tenant circuit breaker provisions. This device accepts overhead or underground service terminations and is designed for wall-hung surface or semi-flush mounting. The devices are factory pre-bussed in a compact enclosure to ensure ease of handling and installation and to maximize wall-space efficiency. Highlights 225 Amp branch tenant provisions Bus rated for 600 Amp Ringless style meter construction Individual split covers with barrel lock compatibility Compact, pre-bussed, easy to handle, hang and wire For small apartment buildings and small professional and commercial buildings Circuit breaker provisions accept the following types of breakers: QP, QPH, HQP, MP-T, MP-HT, MP-MT, QS, QSH, QSHH, HQS, HQSH 5th Jaw Kit included Bottom and rear branch wiring exits (neutral and ground at bottom only) ANSI #61 light gray electrodeposited paint on G90 galvanized steel Suitable only for use as service equipment Outdoor surface mounted enclosure Contact local utility to confirm meter socket approval before installation UL listed for 60/75C conductors Dimensions Product Depth (in.) 7.56 in Product Width (in.) 29.59 in Details Bypass Type No Bypass Indoor/Outdoor Outdoor Maximum Amperage (A) 600 A Meter Socket Type Ringless Mounting Type Surface NEMA Configuration NEMA 3R Number of Circuits 0 Number of Gangs 4 Number of Jaws 5 Number of Spaces 0 Phase Type 1 Phase Power Distribution Features Tamper Proof, Weather Resistant Product Weight (lb.) 114.24 lb Returnable 30-Day Service feed type Overhead/underground Voltage (V) 120/240 V
