7" Video Doorbell Intercom System 1 Monitor and 48 similar items

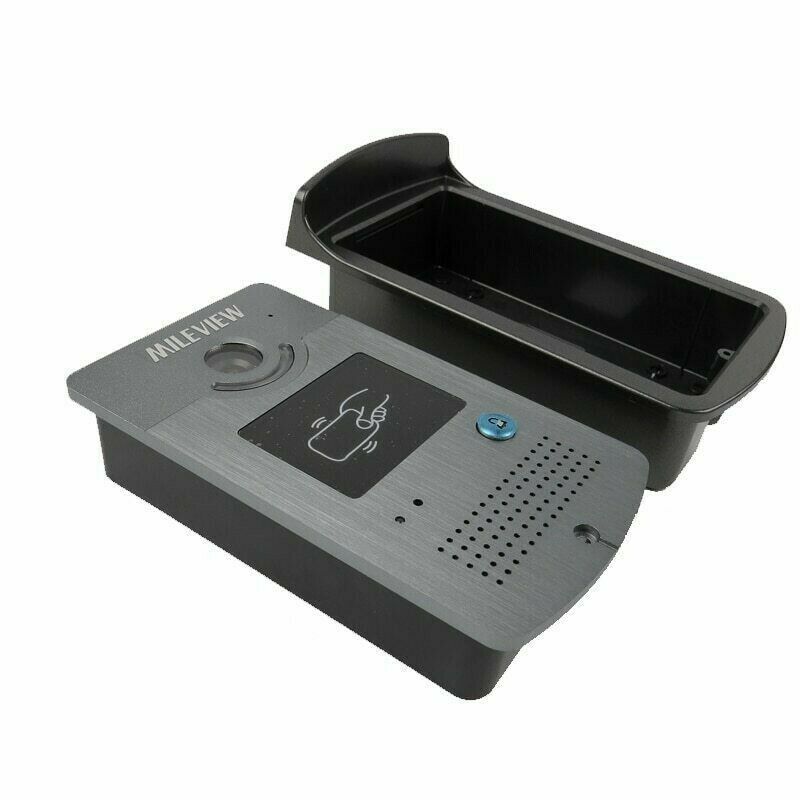

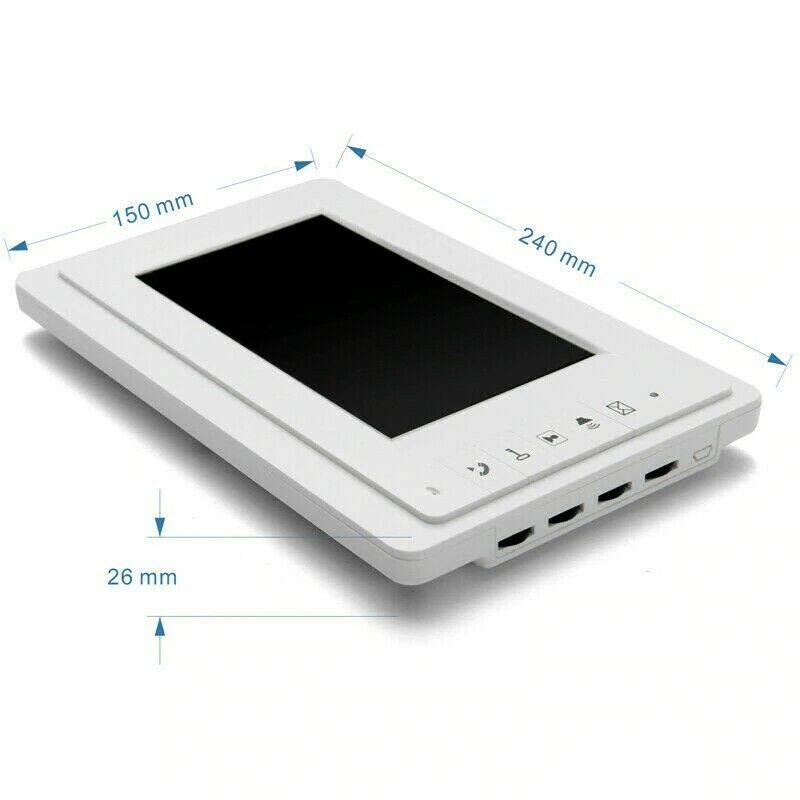

Product Introduce This is a 700 TVL video doorbell intercome kit. It supports to connect up to 6 pieces indoor monitor. It built-in led lights enhance the night view, the rainproof cover provide a good protection for it. Product Specifications Outdoor Camera Camera Resolution 700TVL Night Vision Up to 2 meters Working Temperature -35 C ~ +55 C View angle 85 to 92 Waterproof Come with a weaterproof cover Dimension 130mm(L) x 93mm(W) x 30mm(H) Installation Surface mounted Material ABS Plastic, Aluminum wire drawing Wire System 4 Wire system Model XSL-ID Indoor Monitor Screen 7" colour TFT-LCD Effective Pixels 800 x 480 Wiring 4-wire pin end Room to Room intercom Yes Adapter Input AC100 - 240V 50-60HZ Adapter Output DC 15V 1500mA Case ABS Plastic Working Temperature -35 C ~ 55 C Installation Wall mounted Dimension 240mm(L) x 150mm(W) x 26mm(H) Function Intercom, monitor, unlock the door, 25 ringtones Model XSL-V70F 1. With 4 wires system connection. Using 4-cores cable to connect the camera and monitor. ( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing) The max distance between indoor monitor and outdoor unit is up to 100 meters. Different distance, use different diameter cable, please check the following from to choose corresponding cable. 2. Support Two-way Audio. One camera can working with 6 indoor monitors. One monitor can working with 2 cameras. The camera can talk with the monitor. And the monitor can talk with each other too. 3. Waterproof Rainproof This outdoor camera equipped with a waterproof Rainproof cover, can be used even in very bad weather. You can install it at outside. 4. With white LED night vision The outdoor camera build-in 4 white LED light. With this function, you can see outside no matter day or night. Keep your home more safer. Remote Control Power supply This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc. It controls electric lock directly. Can reduce the load of access controller, save wiring to reduce the hidden trouble Based delay control circuit, lock time can be in 0-15 seconds Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off Operative device: E/M Lock, Access Controller, Exit Push Button. Electric Magentic lock It is a High-performance 180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly! Voltage: 12V DC Mode: NC (locked whilst power supply is operating), fail safe mode Application: wood, iron doors Main body dimensions: 171 x 39.2 x 22mm Pack includes: electric magnetic lock, installation diagrams Construction: stainless steel. Performance Testing: 1000000 times aging test Safety function: Built-in voltage spike suppressor Anti-Residual Magnesium Designed Weight: 1.3kg 5. Wiring Diagram NOTE: We have the user manual in English , French, Spanish and Russian language. 6. Package
