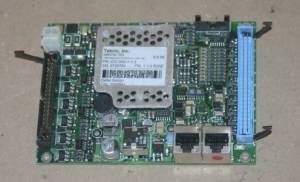

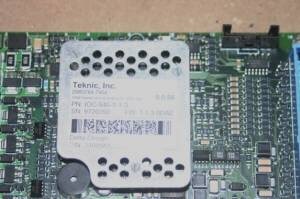

Teknic IOC-540-1-1-3 Networked, Dedicated Input/Output Cluster I/O We gladly ship to most countries! Email us for a Quote Teknic IOC-540-1-1-3 Networked, Dedicated Input/Output Cluster I/O The IOC-540 is a dedicated device for high performance input and output functionality intended for areas of high I/O concentration. The IOC-540 is simple to integrate, scalable and easily distributed. It has a dedicated DSP, delivering microsecond-level internal response time as well as high-speed coordination linked to other devices, including motion devices. The IOC-540 has a list of features such as built-in SSRs, inductive clamping, courtesy power, programmable logic, digital filters, and full optical isolation intended to reduce cost and space needs while increasing machine manufacturability. These features also give the IOC-540 the flexibility to interface to virtually any digital or analog I/O device from any manufacturer, so OEMs are not limited in their design choices. The IOC-540 is compatible with ControlPoints distributed, open-architecture machine control system. ControlPointoffers the OEM machine designer a wide array of control components to allow interconnectivity to just about any digital or analog sensor, stepper motor, digital servo drive, brushless servo motor, and other machine control components. EXCEPTIONAL I/O CAPABILITY The IOC-540 combines exceptional capability with a robust implementation that will save money, machine real estate and production time. Programmable Digilog Inputs The inputs are actually analog with programmable high and low thresholds with settable hysteresis. Digital filtering is also user-definable. This provides excellent noise immunity, allows for detection of marginal sensor, permits robust use of low cost sensors, and allows direct reading of analog sensors. Programmable Logic Array for High Performance The PLA offers microsecond level coordination between I/O and motion nodes and I/O. It provides for capability such as configurable high speed logic functions, autonomous variable processing based on event generation to create triggers, etc. High Power Outputs The six general purpose outputs have high-power circuits equivalent to solid-state relays. There are also clamp diodes built in to prevent damage from inductive voltage spikes. This allows wiring directly to actuators and solenoids without custom break-out boards and additional circuitry. The IOC- 540 can comfortably drive devices such as 10 watt solenoids. Active Voltage Clamping Each output has a clamping catch diode to handle voltage spikes from inductive loads. Direct Wiring Each I/O point can directly interface to TTL logic or optical sensors without extra wires. Moreover, each point has multiple pins, eliminating the problem of crimping multiple wires to one pin, and the development time, cost and ongoing demands of custom transition boards. Noise Immunity All logic signals are fully optically isolated from power, and cable shields are easily connected to chassis ground. A Faraday cage lowers EMI radiation and boosts RF immunity. Courtesy Power Input Courtesy Pins Local, courtesy +5V and +12V power is provided for all logic I/O. Additionally, external 10-24VDC power is routed to each output and has courtesy pins making it daisy chainable to other I/O nodes. This drastically simplifies wiring needs. SCALABLE DESIGN IOC-540s (with IEX-808 expansion cards) allow OEMs to scale from a few I/O points to a few thousand. And the IOC- 540 is performance scalable as well. Physical Scalability IOC-540 nodes virtually eliminate the concern of running out of I/O or paying for unused points. Each IOC-540 natively provides 10 inputs and 6 outputs. By adding IEX-808 expansion cards, I/O is expandable to 42 in and 38 out per node. OEMs can use up to 31 nodes per network controller. Scalable Performance Coordinating responses between I/O events, or between motion and I/O can be accomplished in a multitude of ways with varying levels of simplicity. The simplest method provides deterministic coordination within a couple milliseconds (exact timing is machine lay-out dependant). The most elegant coordination method will deliver microsecond level coordination regardless of machine layout. So as OEM requirements evolve change, the IOC-540 provides the performance flexibility and physical scalability to continue to meet changing needs. Powerful Development Environment The IOC-540 is compatible with the ControlPoint Rapid Prototyping Environment (RPE). This motion and I/O environment allows code to be written by software novices so they can get a machine cycling in a few hours or individual I/O points tested and single axes moving in a few seconds. This reduces software resource drain and allows mechanical and electrical testing to occur independently of software development. The RPE includes a user-friendly motion and I/O interface and a powerful Visual Basic scripting tool. For more information, click here to view the datasheet Don't forget to place your bid. By bidding on this auction you agree to the following terms: Shipping Terms: Buyer pays all shipping costs. Let us know if there is an issue with the shipping costs, as they are automatically calculated by ebay. Shipments made to California must include 8.00% sales tax unless we are provided with a valid resale certificate. Payment Terms: Payment is to be made by PayPal Please contact us if you have any questions Payment is to be received within ten days of close of auction. Should payment not be received within ten days the item will be re-listed and high bidder will forfeit. No personal checks will be accepted. International Terms: (These terms only apply to international shipments.) Buyer is responsible for all brokerage, customs, and or duty charges. Not all items are available for international shipment due to import/export regulations. In the event that we are unable to ship to buyers country, buyer will receive a full refund. Payment must be made in US Dollars. Money must be drawn against a US bank. Warranty Terms: The 14-day return period begins the day of receipt. What you see in the picture(s) is what you get nothing more nothing less. Test results of item(s) in auction are described to the best of our ability in the ad. The results of all tests that are performed are disclosed in the ad. The maximum liability of Betterstudiogear is the high bid of the auction. Return Terms: Returns are allowed within 14 days we employ security features on our items and record all serial numbers to ensure we receive the same item back. Medical Terms: The following terms apply to any and all medical items or any item offered for sale in any medical category or any item that eBay deems these terms are applicable to: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, you may not on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. The buyer will not hold the seller, eBay or the item's manufacturer responsible for the appropriate or inappropriate use of this device either by the user or a third party. Once purchased, it is the sole responsibility of the purchaser to assume any and all liability from the use of this device. Please note before bidding that any medical equipment purchased should be completely tested by a qualified biomedical technician prior to being put into service Dan Rydell in San Diego, CA, USA Phone: 619-519-0869 Online Business name: Betterstudiogear If any provision of this Auction Contract is held unenforceable, All remaining provisions of this Contract shall remain in full force and effect. Copyright 2014 Betterstudiogear - All Rights Reserved. Auction Wizard 2000 - The Complete Auction Management Software Solution
