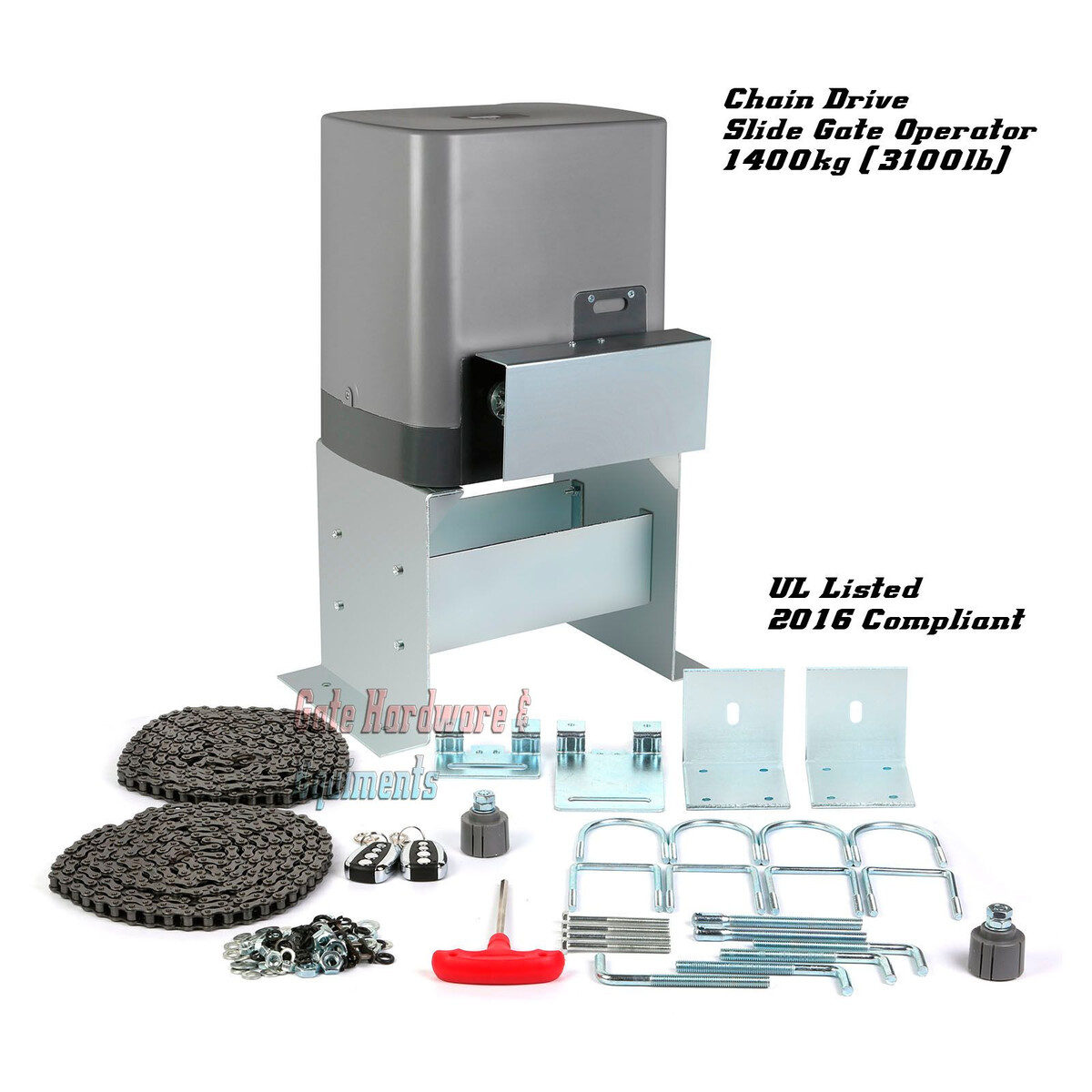

Features: MCU is supplied to control the gate operator. Keypad / single button interface. Photo beam safety beam interface. User can select Auto-close function. Manual key release design for emergency purposes. Main technical parameters Type PY800AC (L) PY800ACU (L) PY1400AC (L) PY1400ACU (L) Power supply 220V, 50Hz 110V, 60Hz 220V, 50Hz 110V, 60Hz Motor speed 52rpm 62rpm 52rpm 62rpm Rated output power of motor 360W 500W Output shaft height 58.5mm Max. gate weight 800kg (1800lb) 1400kg (3100lb) Output torque 18N·m 25N·m Noise ?60dB Duty cycle S2, 15 minutes Remote capacity 20 Environmental temperature -20C~+50C Gate Move speed 11m/min 13m/min 11m/min 13m/min Mechanical Installation The PY800AC?L) /PY1400AC?L) will handle gate weighting up to 800kg/1400 and up to 14m/20 if the proper installation procedures have been followed. The PY800AC?L) /PY1400AC?L) gate operator operates by forcing a drive rack by a drive gear. The entire configuration is shown in the diagram below. The gate operator must be installed on the inside of the gate. The PY800AC?L) /PY1400AC?L) Chain-driven Gate Operator operates by forcing a straight piece of chain through its chain box. This length of chain is extended between two chain brackets located at opposite ends of the gate. The entire configuration is shown in the pack list. Gate preparation Be sure the gate is properly installed and slides smoothly before installing the PY800AC?L) /PY1400AC?L) sliding gate operator. The gate must be plumb, level, and move freely. Conduit In order to protect the cable, use PVC conduit for low voltage power cable and control wires. Conduit must be preset into the concrete when it is poured. Wires within the conduit shall be located or protected so that no damage can result from contact with any rough or sharp part. Concrete Pad The base unit of the gate operator requires a concrete pad in order to maintain proper stability. The concrete pad should be approximately 24? (600mm) x 12? (300mm) x 18? (460mm) deep in order to provide for adequate operation. Once the gate is mounted adequately, electrical power is available, and the concrete pad is poured, you are ready to proceed. Anchors You can use the anchors that are provided with the operator, 3 anchor bolts (4), anchors, washers, and nuts. These anchors must be set into the concrete when it is poured, or you can use wedge anchors (1/4? x 4?). Operator Base Mount the gate operator base to the concrete pad. The distance between the gate and the base should be no more than 2 oe ? (64mm). Verify that the operator is leveled properly. Package Include * Main Unit (1 PC) * Control Board (1 PC) * 2 Remote Controls * 20ft of Chain (4 PCs) * Photo-eye Sensor (1 PC) * Mounting Brackets * Hardware and Concrete Pad mount * Manual More information can be found on the operator manual We offer 2 models 110v and 220v (We send to USA customers 110v and Europe 220v unless specified by the customer)
